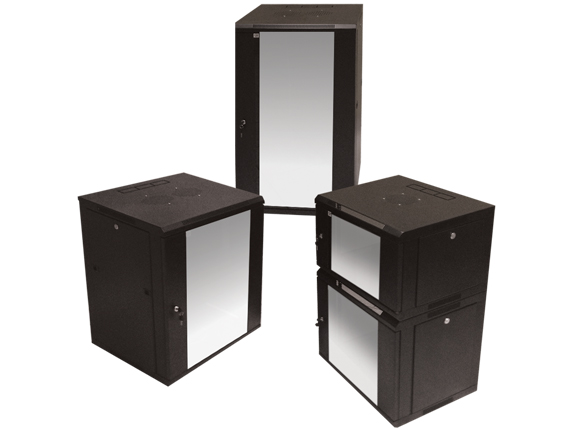

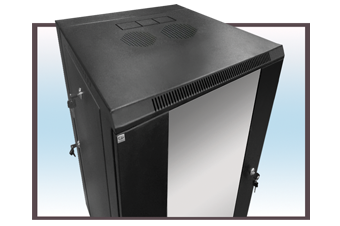

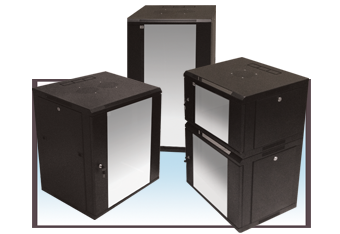

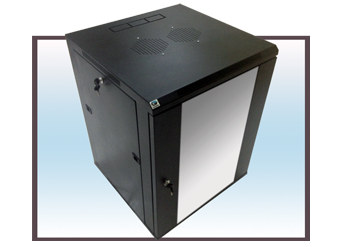

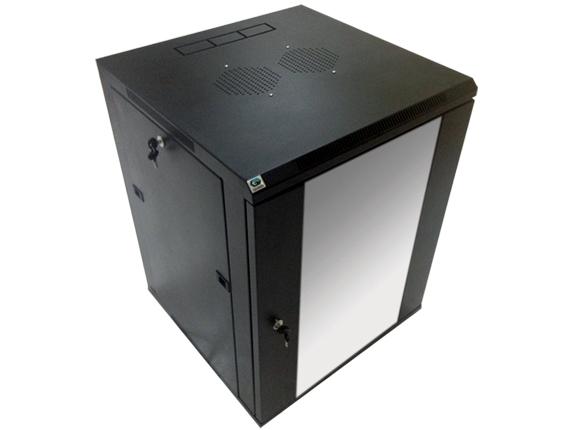

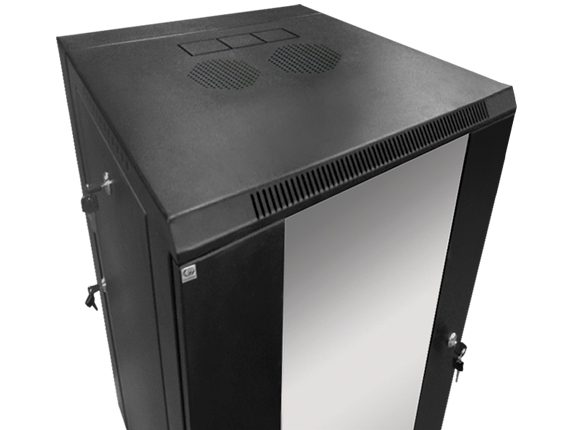

Gamma Wall Mounted Single & Double Sections Cabinets
Features:
- Rigid Welded Steel Frame
- Structure made from steel sheet
- Ventillation Slots in Front and Side. 1 or 2 Fans are equipped as standard.
- Hinged Cabinet Body can open 120 degrees and secured to wall mount section by lock and key for double section cabinet.
- Wall mount cabinet has cable access panels top and bottom.
- 4pair of L-shape mounting rails and rail depth can adjust in 25mm increments.
- 6mm Tempered Glass Door provides full view of equipment with full 180 degrees opening and can easily removed and complete with lock and key.
- Pair of solid Side Side Panels are removable with latches or lock.
- High quality, powder coat finish black 9005 or gray 7035
- Gamma cabinets comply with EIA-310 -D 19" Standard
Single Section Wall mounted Cabinets(other sizes also available)
| Ordering No. | Description W(mm) x D(mm) |
Height (mm) |
GMC-WMS 6-65 |
6U 600mm x 500 9U 600mm x 500 12U 600mm x 500 15U 600mm x 600 21U 600mm x 600 |
365 495 630 760 1030 |
Double Section Wall mounted Cabinets(other sizes also available)
| Ordering No. | Description W(mm) x D(mm) |
Height (mm) |
GMC-WMS 6-66 |
6U 600mm x 600 + 100 9U 600mm x 600 + 100 12U 600mm x 600 + 100 15U 600mm x 600 + 100 21U 600mm x 600 + 100 |
365 495 630 760 1030 |
>>>Accessories (optional)
